Sheet resistance and OD meters
We have been building sheet resistance measuring devices since 1981.
Through continuous development and improvements, we can now offer a range of devices.
Basically we differentiate between on-line (in-situ)
and off-line (laboratory) measuring devices.
Measurable substrates/applications, such as:
- Packaging film
- Capacitor foil
- Sun protection film
- Coated glass (Low-E; ITO)
- Solar cell production (wafers)
- Flexible circuit boards
- Metallized paper (deco)
- EMC shields
- Metallized textiles
- Galvanically applied layers

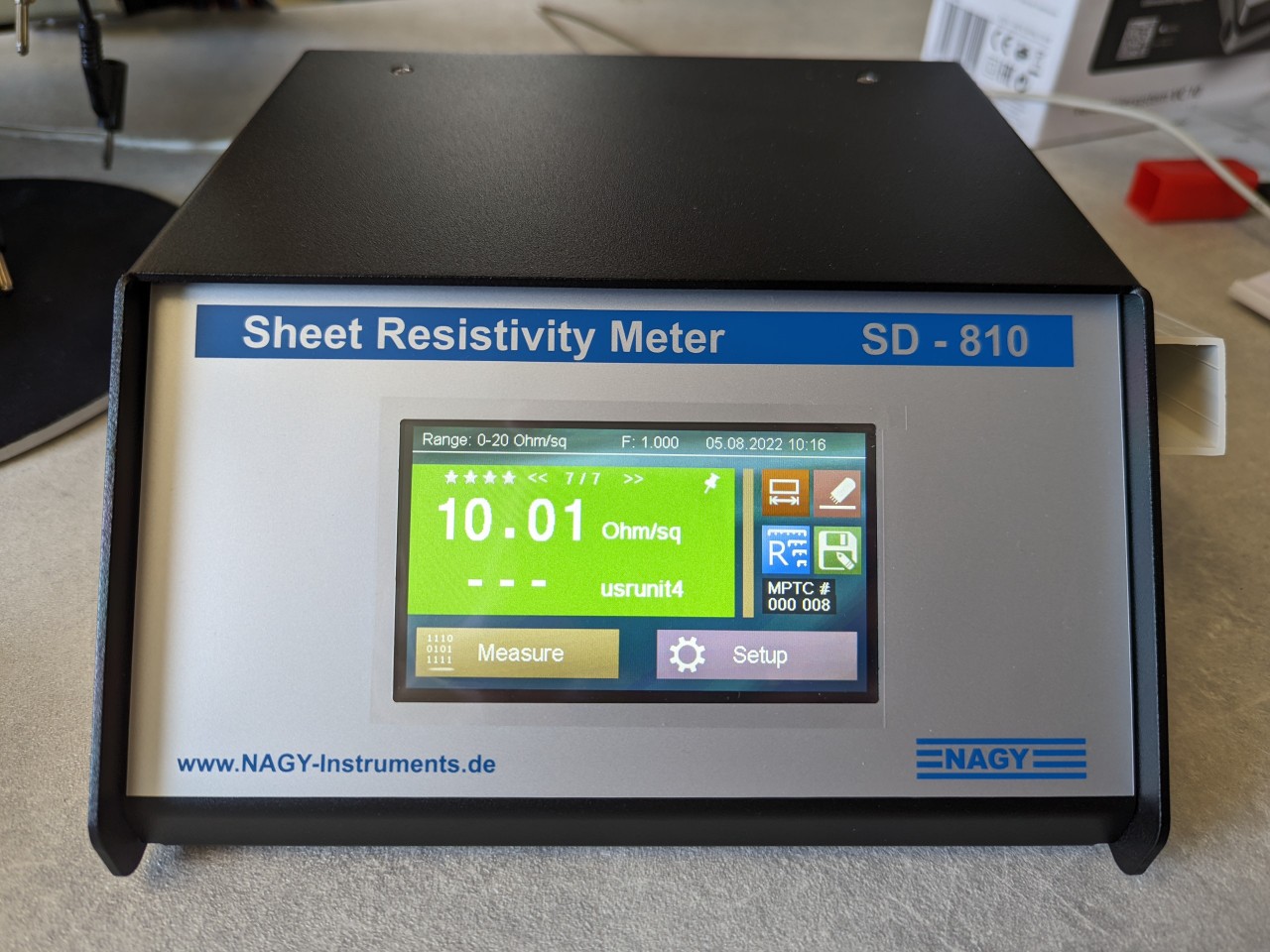

SD-810
Measuring device for measuring sheet resistance
SDKR-13 & SDKR-25
Four-point measuring stylus for SD-800
and 1.3 and 2.5 mm versions
E-650
Calibration box for checking measuring devicesType SD-800 (also SD-600/SD-510/SD-460)
Stratometer G
Hand-held measuring device for contactless
Measurement of the sheet resistance with
High-frequency measurement method
SRM-14T
Measuring device for contactless measurement of sheet resistance
SRM-14TS
Like SRM-14T, but for measuring small areas, such as segmented coated films
SRM-14OD
Like SRM-14T, but also with integrated sensor for optical density (OD)
SRM-50
SRM-50 series: The measuring device for continuous, non-contact on-line measurement (!) and monitoring of the sheet resistance
CRT-1
Combined measuring device for continuous, non-contact on-line measurement and monitoring of sheet resistance and optical density
